Boost your production efficiency with our fully integrated bottle filling line, designed for high‑speed, high‑precision liquid packaging across food, beverage, cosmetic, and chemical industries. This complete system combines filling, capping, sealing, and labeling in one stable, easy‑to‑operate unit. Engineered with food‑grade stainless steel and intelligent PLC control, it ensures accurate dosing, minimal waste, and consistent quality. Flexible for various bottle shapes and sizes, it supports fast changeover and long‑hour reliable running. Ideal for factories seeking stable output, lower labor costs, and upgraded packaging standards. Durable, safe, and certified for global markets, it’s your all‑in‑one solution for modern bottling production.
This complete integrated bottle filling line combines high-precision filling, intelligent capping, stable sealing, and efficient labeling in one streamlined system, ideal for beverage, food, cosmetic, chemical, and other liquid packaging industries. Built with food-grade stainless steel and advanced PLC control, the line ensures safe, hygienic, and stable operation while meeting international production standards.
The HYGF-5000A-6 filling unit delivers accurate dosing with low error rate, greatly reducing material waste and improving product consistency. Paired with the HYIP-1A capping machine, it provides tight, reliable sealing for various bottle and cap types. The HYXG-4C-SEA labeling system supports flexible label positioning with high adaptability to different bottle shapes and sizes. The HYSP-120R-100A sealing component enhances sealing efficiency and durability for long-hour continuous production.
User-friendly design enables easy operation, simple maintenance, and fast format changeover, effectively lowering labor costs and boosting overall productivity. With strong stability, low failure rate, and long service life, this fully automatic bottle filling line is the optimal choice for manufacturers aiming to upgrade production capacity, improve product quality, and strengthen market competitiveness.
| automatic grade: | Automatic | packaging material: | Plastic, Glass |
| key machines: | Filling Machines, Capping Machines, Plugging Machine, Bottle Collection Turntable | voltage: | AC220V/110V, 1Phase |
| machinery capacity: | 500-1500BPH | place of origin: | Jiangsu, China |
| Weight (KG): | 1400 | brand name: | HENGYUAN |
| dimension(l*w*h): | 900x190x220 cm | power: | 5.5 kW |
| Keywords: | Anti-corrosive bottle filling capping line | Optional filling heads qty: | 6 pcs (4, 8, or 12 heads available) |
| Measurement method: | Time-based control | Operation Control: | PLC+Touch screen |
| Bottle diameter: | Customizable per customer sample | Machine material: | PP, PVC, PTFE, Aluminum, Stainless Steel, Iron Plate etc. |
| Air pressure: | 0.6-0.8Mpa | Liquid Inlet Control: | Automatic liquid level sensor control |
| Automatic function: | No bottle no working | Usage life: | 6-10 years |

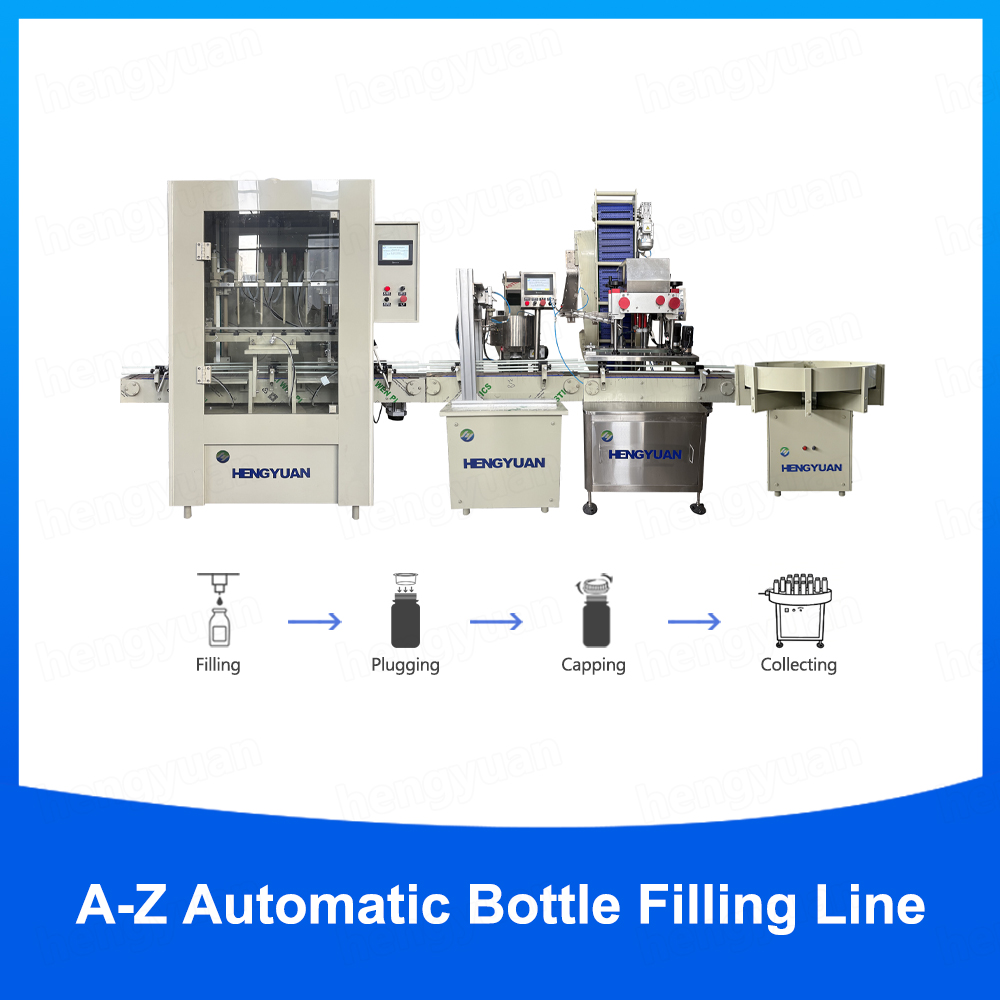

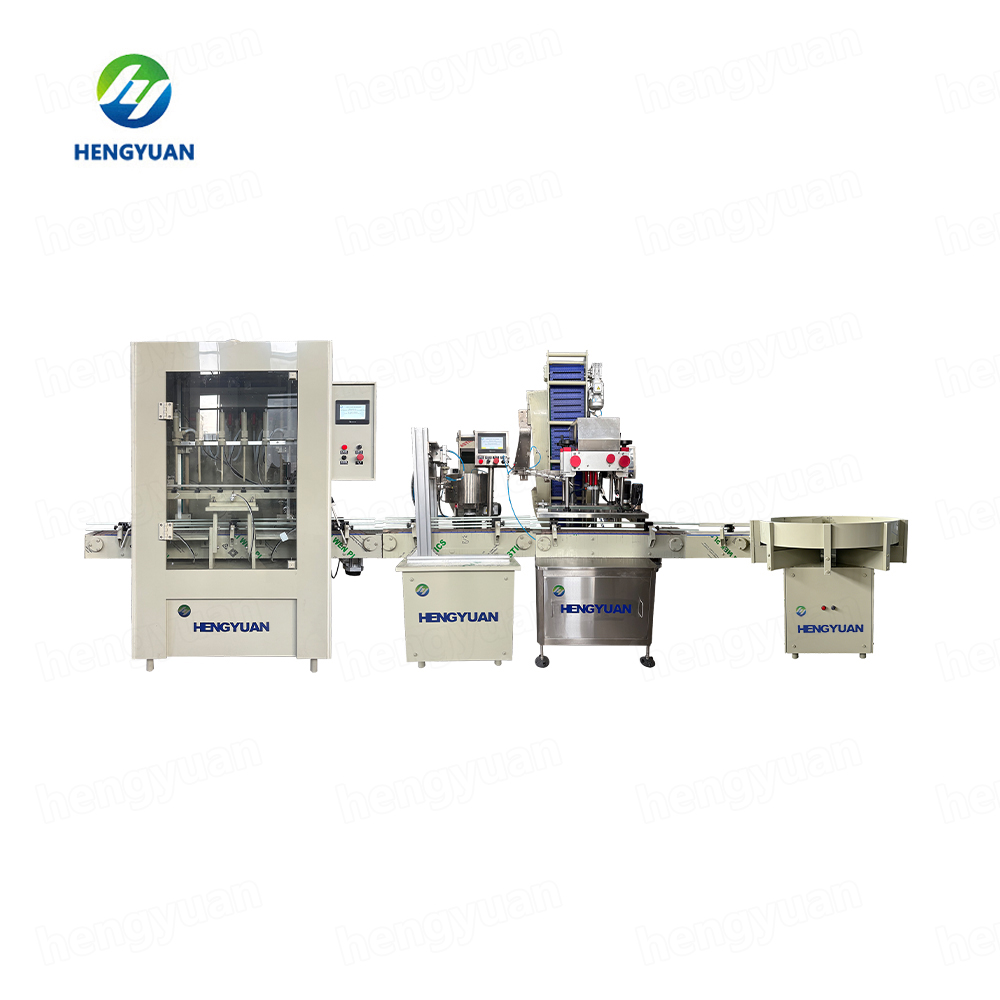

HYGF-5000A-6+HYIP-1A+HYXG-4C-SEA+HYSP-120R-100A Bottle Filling Line
This automatic corrosion-resistant bottle filling line is a high-tech packaging system controlled by a microcomputer PLC with integrated photoelectric sensing and pneumatic actuation. All operating parameters are conveniently set via an HMI touch screen. Components that come into contact with liquids are manufactured from corrosion-resistant non-metallic materials, and the filling nozzles feature a diving function to effectively eliminate foam and bubbles.
The complete line integrates multiple machines, including a bottle plugger, automatic screw-on capper, and bottle collection turntable, ensuring seamless and efficient packaging. It is primarily designed for bottling free-flowing chemical products with aggressive or corrosive properties.
Machine Application
Liquid bleach filling line, javel liquid filler‑capper line, sulfuric acid bottle filling line, 84 disinfectant bottle filling line, liquid dosing filler‑plugger‑capper line, sodium hypochlorite disinfectant barrel filling, plugging and capping system, strong acid filling line, liquid fertilizer filling line, toilet bowl cleaner bottle filling line, nitric acid solution barrel filling line, hydrochloric acid solution filling machinery, kitchen cleaning solution filling line, and related chemical bottling applications.
HYGF-5000A-6+HYIP-1A+HYXG-4C-SEA+HYSP-120R-100A Bottle Filling Line
Techinical parameters
| Item | Specification |
| Filling Heads | 6 pcs (4, 8, or 12 heads available) |
| Inner Plugging Head | 1pc |
| Capping Head | 1pc |
| Operation Interface | HMI Touchscreen |
| Measuring Method | Time-based control |
| Filling Capacity | 0.5-5L |
| Filling Speed | 500-1500 BPH |
| Filling Accuracy | ≤ +0.5% |
| Bottle Diameter | Customizable per customer sample |
| Liquid Inlet Control | Automatic liquid sensor control |
| Automatic Function | No bottle, no working |
| Suitable Liquids | Free-flowing liquids, especially corrosive types |
| Air Pressure | 0.6-0.8 MPa |
| Air Consumption | 500 L/min |
| Power Supply | AC 110V / 220V / 240V, single-phase (globally configurable) |
| Total Power | 5.5 kW |
| Dimensions (L x W x H) | 900 x 190 x 220 cm |
| Weight | Approx. 1400 kg |
| Note: All technical data are for reference only and subject to final confirmation based on the UserRequirement Specification (URS). | |

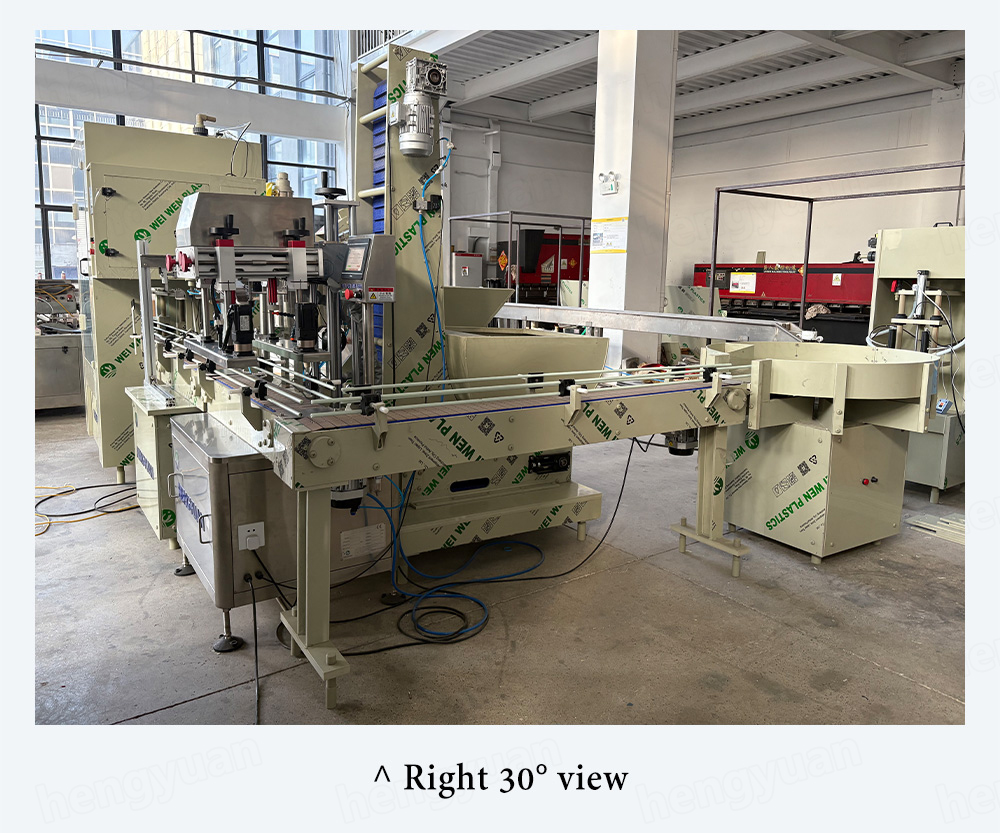

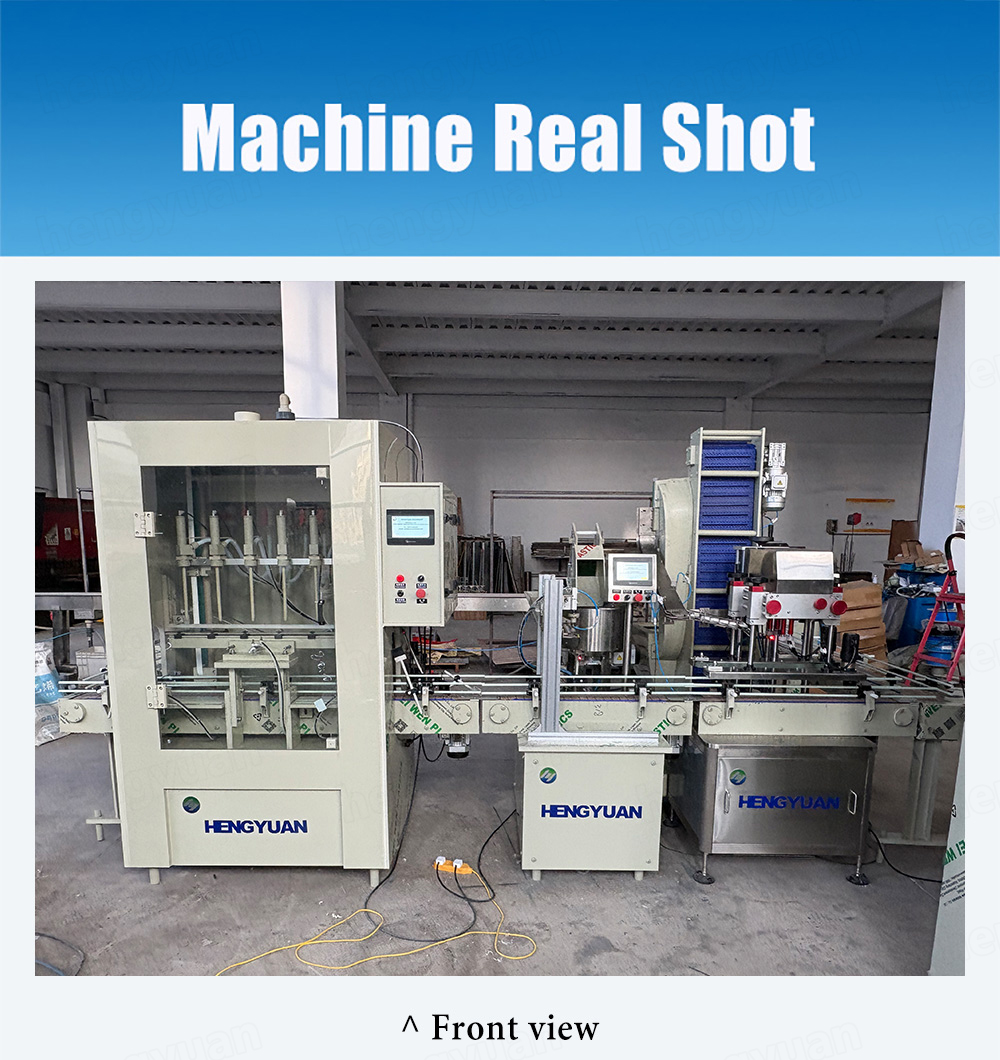

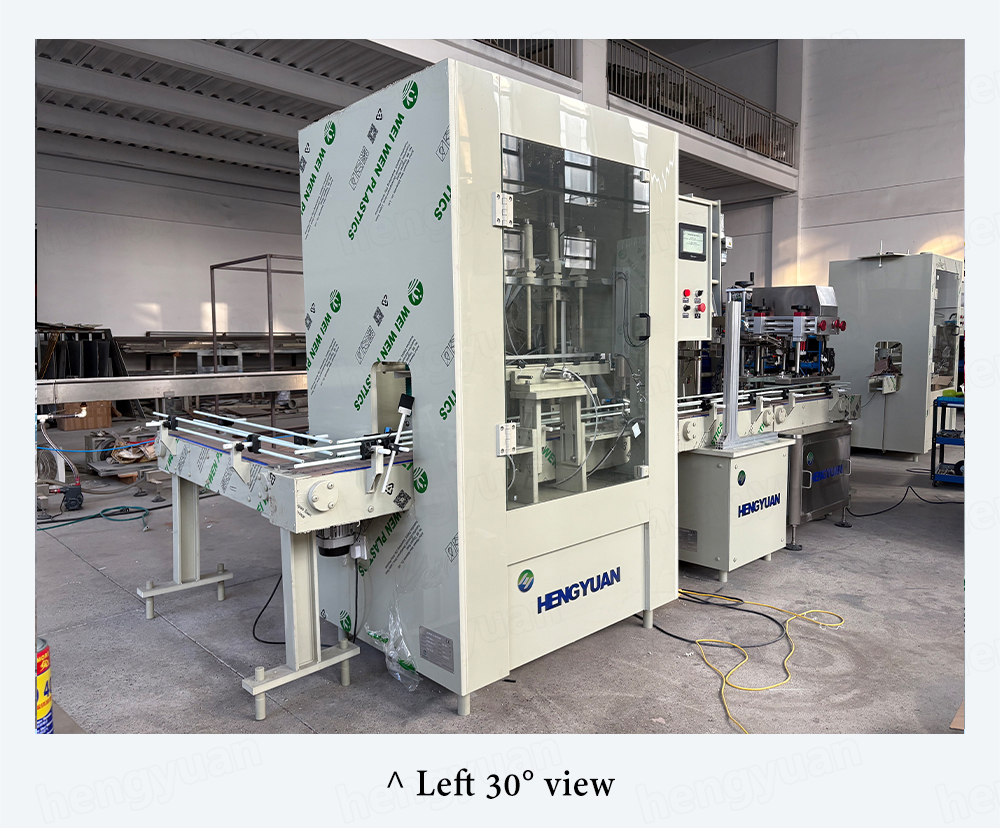

Machine Display
